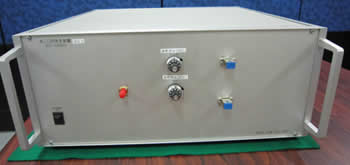

2-5 Picosecond pulse generator
<Wide Band Tunability in Wavelength and Pulse Repetition Rate>
- Phase and Amplitude modulation is achieved by single-stage
Mach-Zehnder modulator.
This Method license from NICT.
(National Institute of information and Communication Technology)
- Optical Source and oscillator are built in
- Optical wavelength is tunable with external optical signal input.
- Pulse repletion ratio is tunable with external oscillator signal
input.
Specifications
| Item |
Specfications |
| Built-in optical source *1 |
DFB-Laser diode |
| Wavelenth |
1550nm |
| Optical input level |
6dBm |
| Optical connector |
SC |
| Built-in oscillator *2 |
9.95328GHz |
| Electric connector |
SMA |
| Optical output level |
18dBm |

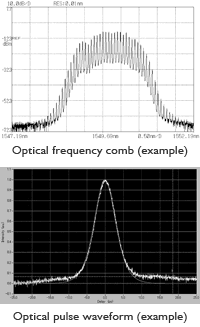

| Optical pulse width |
2-5ps |
| Power supply |
100VAC |
*1 external optical source is available.
*2 external oscillator signal is available.
