| Model.No | Optical fiber | Wavelength | Tap ratio | Datasheet |
|---|---|---|---|---|
| FAS0201MS02 | SMF | 1310/1550nm band | 98:2 | Datasheet |
| FAS0201MM10 | GI50/125 | 850nm band | 90:10 | Datasheet |

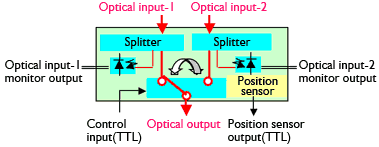

◆2x1 Optical switches (2x1B)
- Bi-directional
- Switching control : TTL
- Position sensor output : TTL
- Low insertion loss
- Self-maintenance
| Model.No | Optical fiber | Wavelength | Datasheet |
|---|---|---|---|
| FAS0201BS | SMF | 1310/1550nm band | Datasheet |
| FAS0201BM1 | GI50/125 | 850nm band | Datasheet |
1xN/N+1 Optical switches
- Switching : 1x4, 1x5, 1x8 and 1x9
- Redundancy : 4+1 and 8+1
- Low insertion loss : typ.0.6dB
- Good repeatability : typ.0.01dB
- Low cross talk : > 60dB

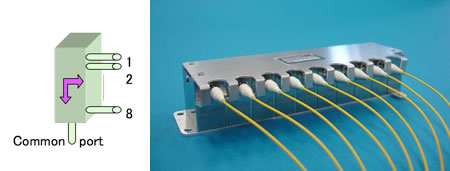

◆1x8 Optical Switch

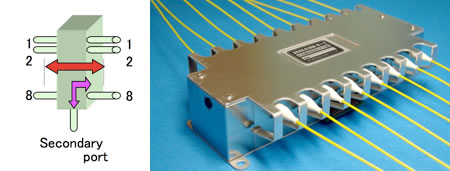

◆8+1 Optical Switch
| Item | 1x8 Optical Switch |
|---|---|
| Optical fiber | SMF |
| Wavelength | 1280-1340nm 1460-1580nm |
| Insetion loss | < 1.5dB |
| Polarization dependence loss | < 0.15dB |
| Repeatability | < +/-0.05dB (typ.0.01dB) |
| Cross talk | > 60dB |
| Return loss | > 40dB |
| Drive voltage | 3.5 - 4.0V |
| Resistance | 12.1+/-2.05oham |
| Dimensions | 122(W)x30(D)x27(H)mm |
Optical Selector
- Compact size
- Low insertion loss : <1.5dB
- High repeatability : <+/-0.02dB
- Low PDL : <0.05dB
- High repeatability for using YAG welding technology
- Controller interface : RS-485
- Valuations : 1x8,1x16,2x(1x8),2x(1x16)
| Item | Characteristics |
|---|---|
| Optical fiber | SMF |
| Wavelength | 1260-1660nm |
| Insetion loss | < 1.5dB |
| Polarization dependence loss | < 0.05dB |
| Repeatability | < +/-0.02dB |
| Cross talk | > 60dB |
| Return loss | > 40dB |
| Optical connector | FC/LC |
| Switching time | < 3s |
| Power supply | 24VDC |
| Interface | RS-485 |
| Ambient temperature | 0-40C |
Configuration
Please contact us for MMF and PMF.
Details:Datasheet
